System x3650 M5 – M5210 controller jbod mode – invalid arguments

1 Reply

Recently I wanted to use disks connected to M5210 raid controller as JBOD…

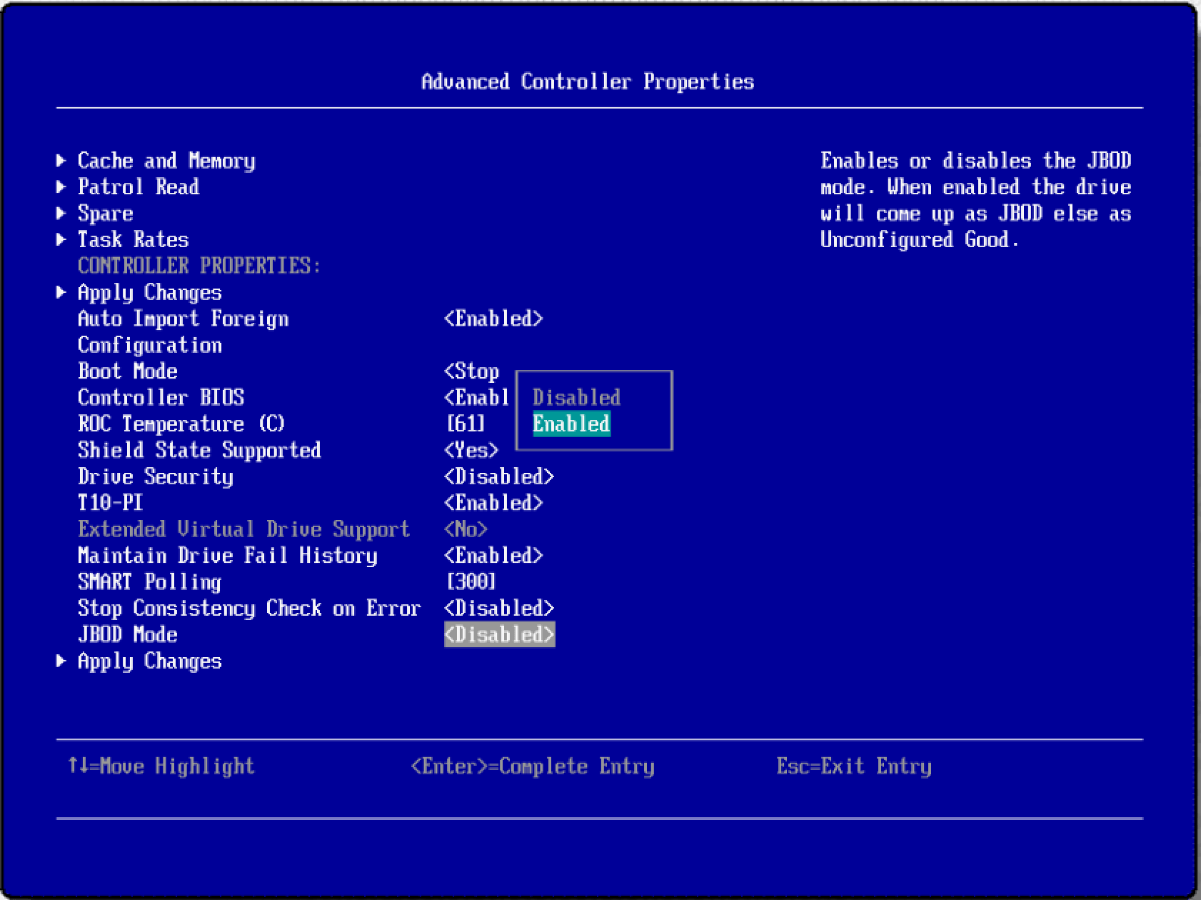

My controller has also additional cache and battery pack and in this configuration you are getting the error “The requested command has invalid arguments.” when trying to Apply change to JBOD…
001 002 003

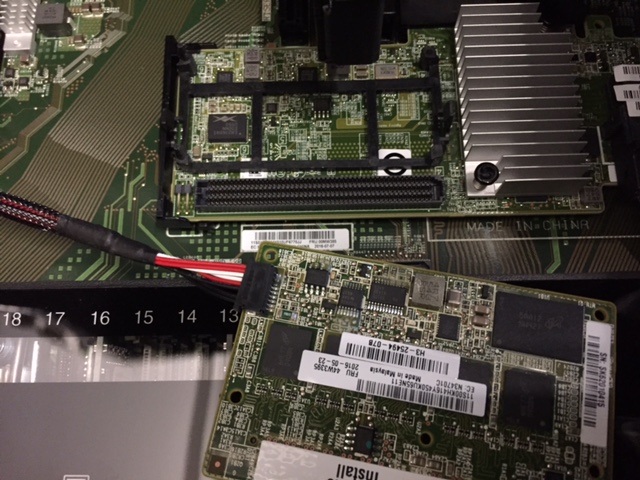

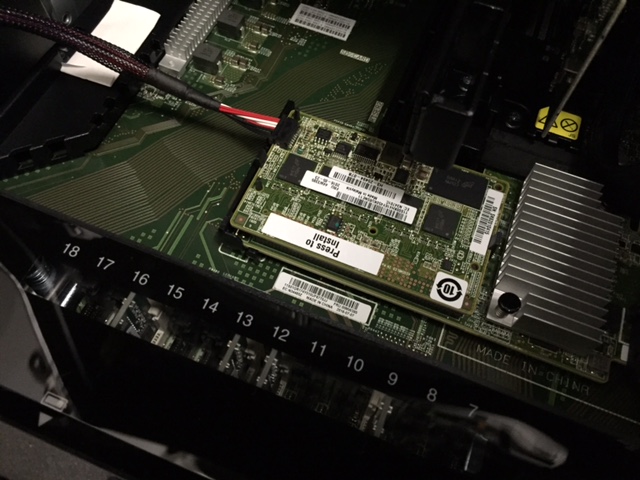

well… If you physical remove the cache from your controller…
IMG_2476 IMG_2477

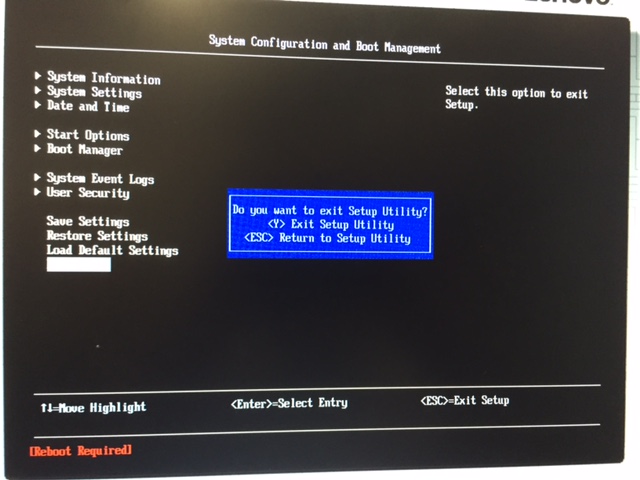

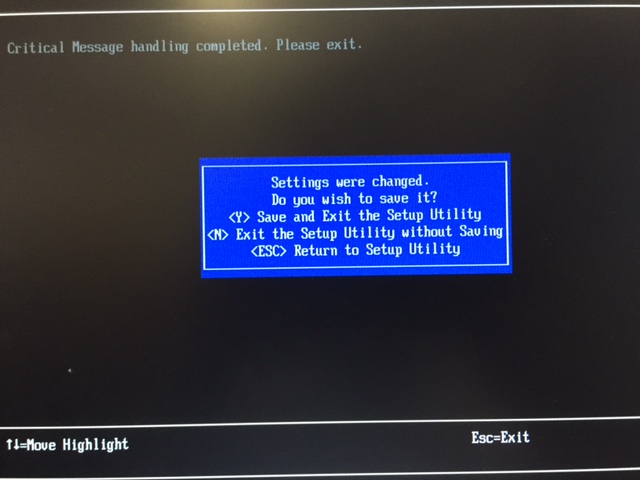

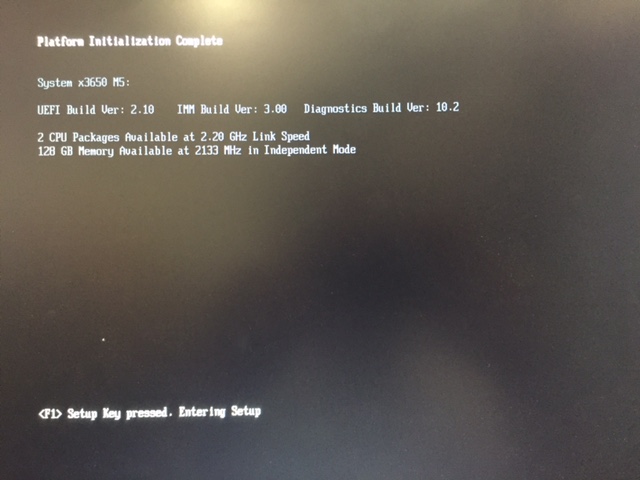

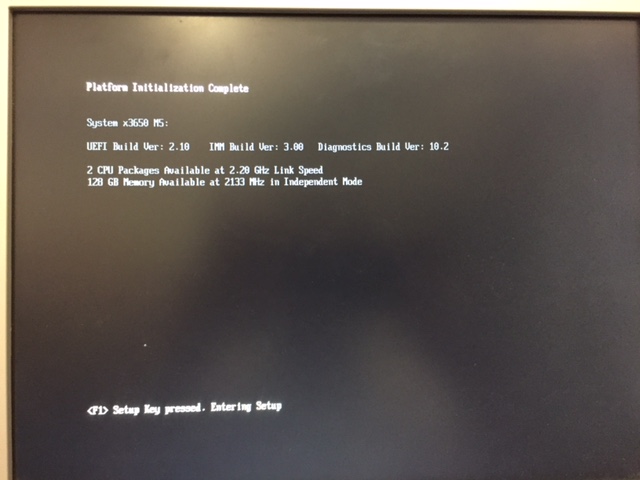

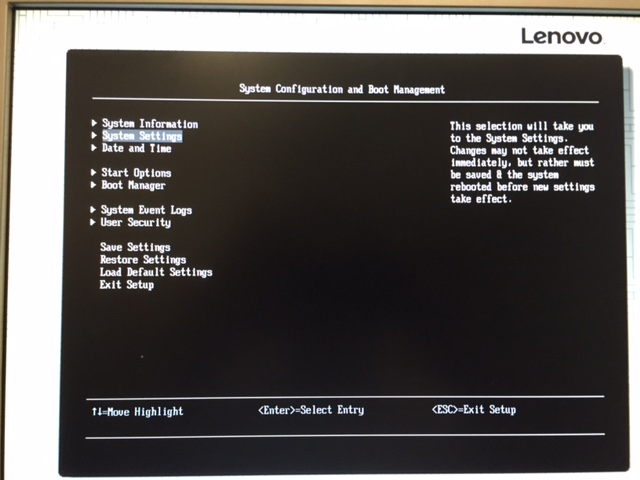

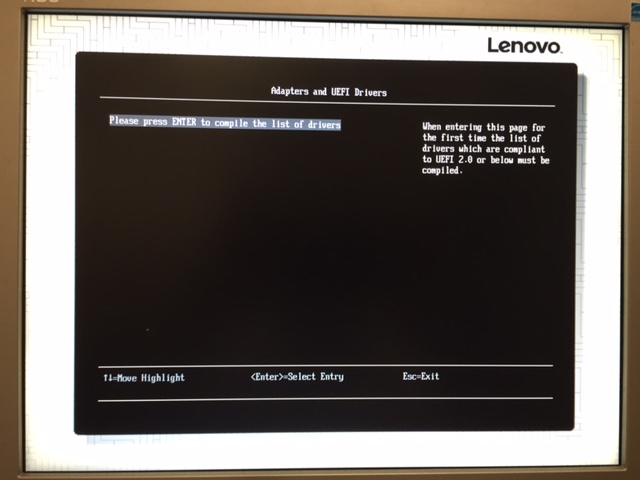

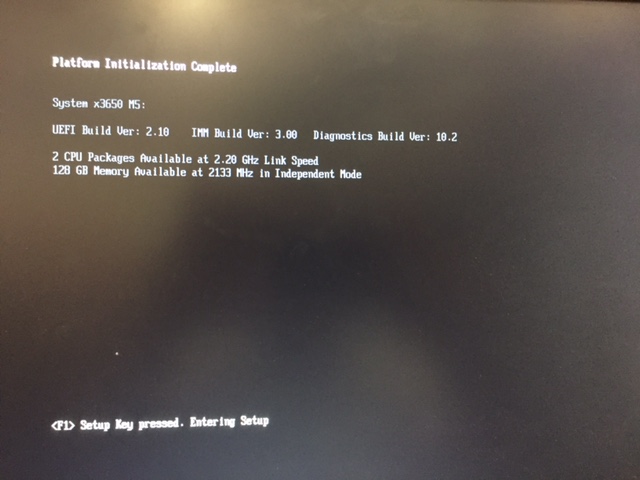

…and a reboot… you will be able to enable JBOD mode…
IMG_2479 IMG_2480 IMG_2481 IMG_2483 IMG_2484 IMG_2485 IMG_2486 IMG_2487 IMG_2488 IMG_2489 IMG_2490 IMG_2491 IMG_2492 IMG_2493 IMG_2494 IMG_2495 IMG_2496 IMG_2497
…finaly in Windows – disk manager you can see your disks…
IMG_2499

Important NOTE for those that would like to test Storage Spaces Direct technology that is comming with Windows Server 2016 (currently TP5)!

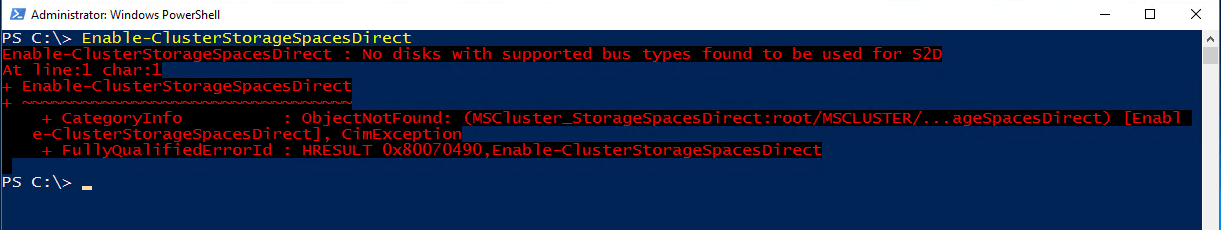

This will not work as BUS TYPE is still RAID and this is not supported – it should be SAS. The setup will fail at the step Enable-ClusterStorageSpacesDirect

008

The only solution is to buy a simple HBA as written here.

“…All SATA and SAS devices must be attached to a SAS Host Bus Adapter (HBA). This HBA must be a “simple” HBA, which means the devices shows as SAS devices in Windows Server…”
